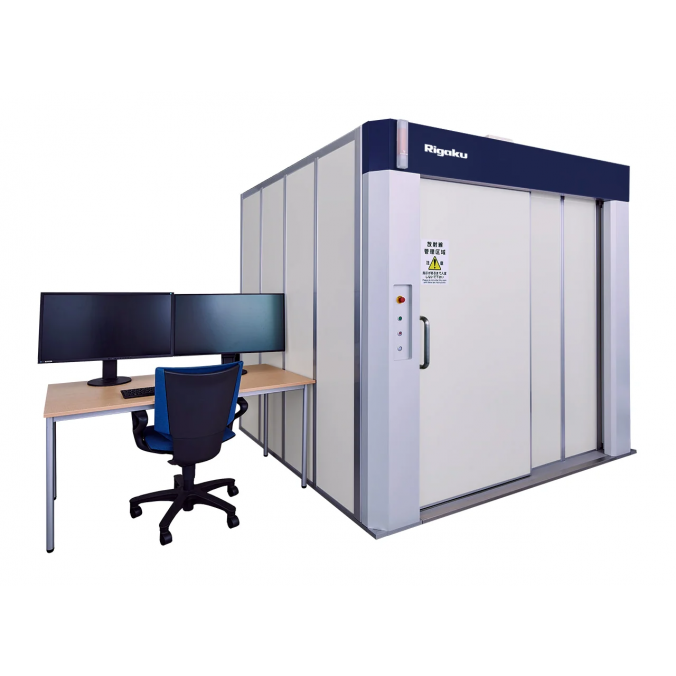

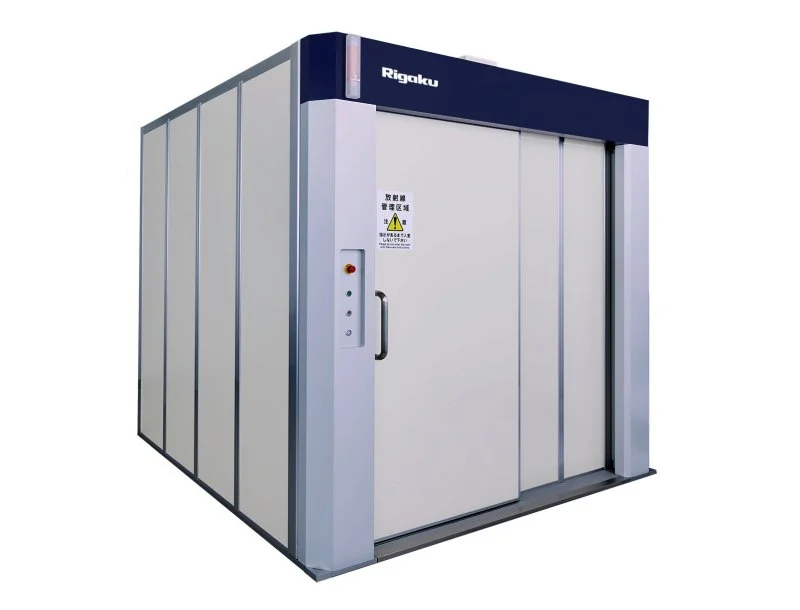

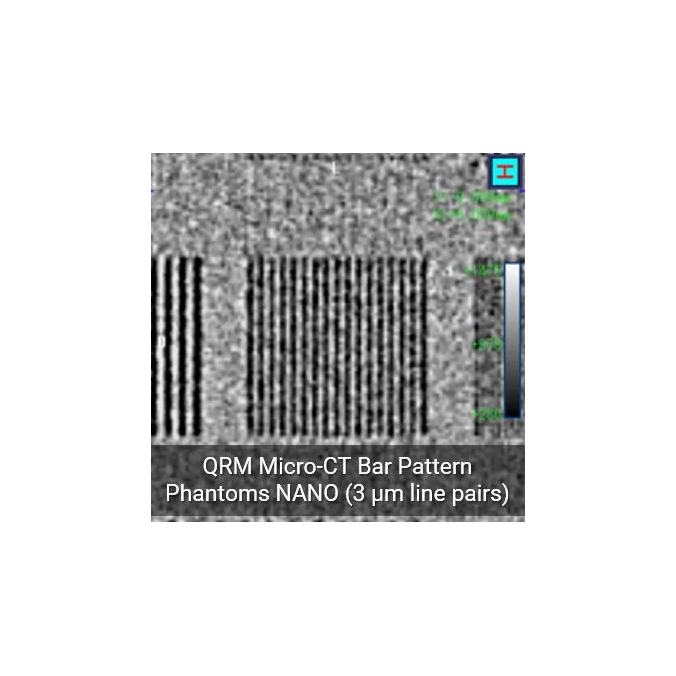

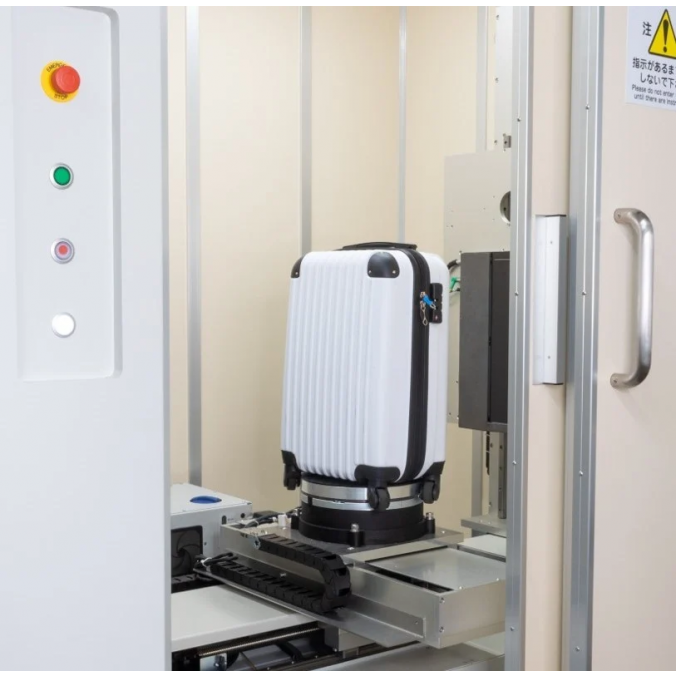

Rigaku CT Lab HV is a high-resolution and high-voltage industrial X-ray CT (computed tomography) scanner. The large radiation enclosure, wide door opening, 225 kV high-voltage X-ray source, and variable SOD (source-to-object distance) and SDD (source-to-detector distance) provide the ultimate flexibility to scan small to large samples, up to 600 mm in diameter ×1200 mm in height with a 350 mm FOV (field of view) non-destructively. The high-resolution setting achieves true 3-micron spatial resolution. Our unrivaled technical support will help you utilize state-of-the-art analysis and simulation techniques.
| Product name |
CT Lab HV |
| Voxel resolution |
Minimum 1.5 microns |
| Field of view (FOV) |
4 — 350 mm |
| Maximum sample size |
600 mm in diameter x 1200 mm in height |
| Speed (shortest scan time) |
1 min |
| Geometry |
Cone beam geometry |
| X-ray source |
300 W micro source |
| X-ray energy |
W anode, adjustable applied voltage 20 - 225 kV |
| Detector |
Flatpanel |
| Detector pixel size |
Detector pixel size |
| Detector size |
2816 x 2816 pixels |
| Dimensions |
2250 (W) x 2150 (H) x 1800 (D) mm (PC not included) |
| Weight |
Approx. 3900 kg |
